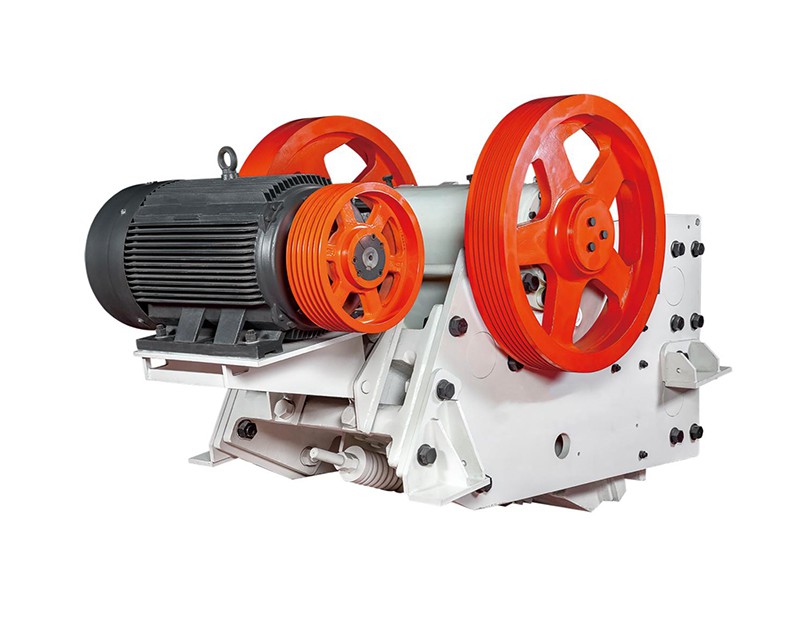

C Series Jaw Crusher

Product name : C Series Jaw Crusher
Product Categories : Crusher
Company name : Shandong Zhongse Heavy Industry Co., Ltd.

Details

Product Description

On the basis of in-depth research on the rock crushing mechanism, our company has developed and designed a jaw crusher suitable for the domestic market using advanced technology from Europe and the United States. Compared with domestic similar products, this product has the characteristics of advanced structure, light weight, convenient installation, reliable operation, simple operation, high output, large crushing ratio, high efficiency and high yield, reaching the international advanced level.

Product Advantage

Using world-class manufacturing technology and the highest-end crafting materials.

The movable jaw assembly is constructed of high-quality steel castings, and the heavy-duty eccentric shaft is machined from satin billet, giving the machine exceptional reliability and durability.

The bearing seat adopts an integral cast steel structure to ensure complete cooperation with the crushing frame, which greatly enhances the radial strength of the bearing seat.

Using finite element analysis technology, the strength of the machine is higher.

The crushing cavity adopts a symmetrical "V" shape structure, so that the actual feeding port width is consistent with the nominal feeding port width.

Equipped with a wedge discharge opening adjustment device, which is simpler, safer and faster than the old-fashioned shim adjustment.

All machines in this series use larger and more durable eccentric shaft bearings than other crushers of the same specification. Its higher bearing capacity and effective labyrinth seal greatly extend the service life of the bearings.

The latest tooth-shaped guard plate is adopted to increase the effective length of the jaw plate and increase the output.

Device Name	Technical parameters of C-series European version jaw crusher
Model		C106	C113	C116	C125	C140	C160	C200
Feed opening size（mm）		700×1060	750×1130	760×1150	950×1250	1070×1400	1200×1600	1500×2000
Input material size（mm）		630	630	650	800	900	1100	1300
Closed side setting（mm）		70-200	70-200	70-200	100-275	125-275	150-300	175-300
Maximum PPM（rpm）		280	280	260	240	220	220	200
Maximum Power（kW）		90/110	90/110	110/132	132/160	200	250	400
Height of feed port（mm）		2005	1930	1960	2100	2260	2650	2800
Lenth（mm）		3320	3228	3320	4184	4400	5900	6700
Width(mm)		2030	1990	2400	2321	3010	3700	4040
Height（mm）		2075	2500	2675	3245	3950	4580	4950
Total weight（T）		19.5	22.3	25.2	41.2	54.5	88.5	137.3
Closed side setting (mm)	Output material size（mm）
15	0-25
20	0-37
30	0-48
40	0-60
50	0-70
60	0-80
70	0-90	120-200	145-205	170-220
80	0-100	155-220	167-225	190-250
90	0-110	180-250	193-260	215-280
100	0-130	208-275	218-285	240-310	299-385
125	0-160	270-350	275-365	295-385	369-459	325-445
150	0-185	320-405	323-425	350-455	420-550	380-530	430-610
175	0-210	365-500	395-510	405-525	493-635	435-605	495-695	630-890
200	0-240	445-570	450-570	460-600	554-715	495-685	560-790	710-1000
225	0-265				595-798	550-760	625-880	785-1105
250	0-290				680-868	610-840	685-965	865-1215
275	0-320						745-1055	940-1320
300	0-370						815-1145	1015-1435
Note: The production capacity is measured when the material is uniformly fed, without bridging or jamming, and the specific gravity of the material is 1.6T/m3. The maximum value is taken for the material containing fine materials, and the minimum value is taken for removing fine materials. The particle size composition, mud content, water content, looseness, and crushability of the crushed material all cause changes in the production capacity.
