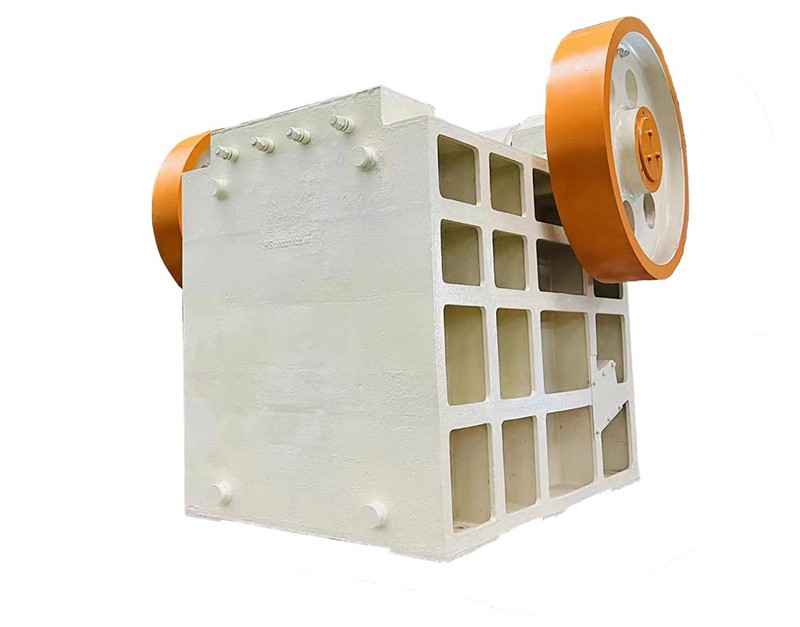

PE Series Jaw Crusher

Product name : PE Series Jaw Crusher
Product Categories : Crusher
Company name : Shandong Zhongse Heavy Industry Co., Ltd.

Details

Product Description

PE series jaw crusher has many advantages such as large crushing ratio, uniform product particle size, simple structure, reliable operation, easy maintenance, and low running cost, etc. It is widely used in metallurgy, mining, building materials, chemical industry, coal and other industries.

Product advantages

Low noise and less dust

Its crushing ratio is large, and the product particle size is uniform.

Simple structure, reliable operation, and low operating costs.

The lubrication system is safe and reliable, with convenient component replacement and simple equipment maintenance.

The specially designed cavity depth crushing improves the feeding capacity and output.

The adjustment range of the discharge port is large, which can meet the requirements of different users.

specifications

Model	Size of feed Opening （mm）	Max Feed Size (mm)	Adjustable range of discharge opening(mm)	Crushing Capacity (m³/h)	Maximum PPM (r/min)	Power (kW)	Weight (Excluding Electric Motor) (t)
GPE500×750	500×750	425	50-100	30-80	275	55	10.8
GPE600×900	600×900	500	65-160	56-192	250	75	16.8
GPE750×1060	750×1060	630	80-140	72-130	250	110	28
GPE900×1200	900×1200	750	120-230	180-500	200	160	48
GPE1100×1400	1100×1400	1000	150-280	380-750	180	200	69
GPE1200×1500	1200×1500	1020	150-300	450-900	180	250	86
GPE1300×1600	1300×1600	1100	200-300	600-1100	180	355	125
GPEX250×1200	250×1200	210	25-60	20-70	330	37	7.7
GPEX300×1300	300×1300	250	20-90	30-90	300	75	11

Note: The yield is an approximate throughput determined based on medium hardness materials. Actual results may vary due to differences in feed, particle size, rock type, and material moisture content.
