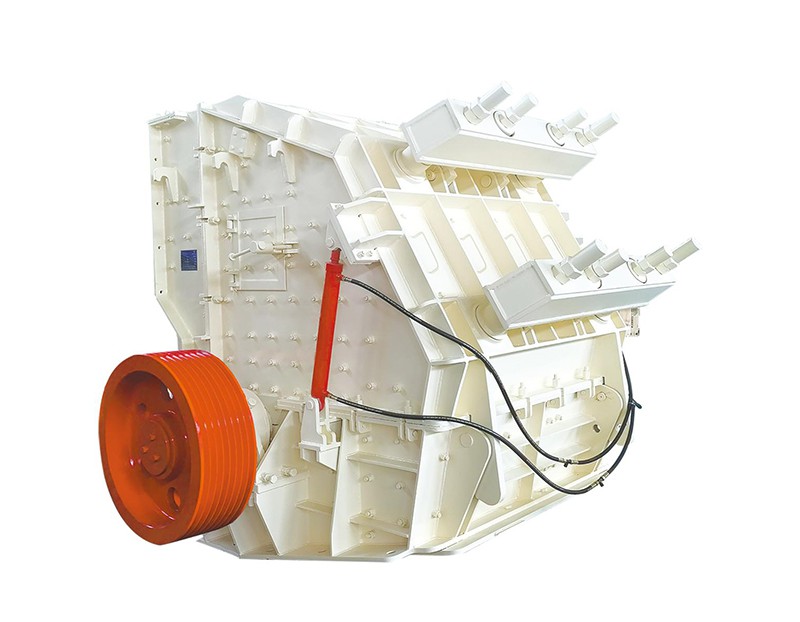

PF series impact crusher

  • Product name : PF series impact crusher
  • Product Categories : Crusher
  • Company name : Shandong Zhongse Heavy Industry Co., Ltd.
Details


Product Description

PF series strong impact crusher can crush various hard ores with compressive strength not exceeding 320MPa, suitable for processing granite, basalt, limestone, river pebbles, cement clinker, quartz, bauxite, concrete, etc. with a particle size of 350-1500mm. The crushed products are cubic in shape, with low needle like content and no internal cracks. It is the preferred equipment for producing high-quality sand and gravel in industries such as high-grade highways, water conservancy, airports, and construction.

Product advantages

PF series strong impact crusher has the advantages of large crushing ratio, simple and reasonable structure, stable operation, simple maintenance, convenient and quick replacement, and high crushing efficiency

After the optimization design, the crushing chamber is enlarged, the feed particle size is increased, and the production efficiency under various application conditions is greatly improved through the optimization of the liner plate and the specific rotor

The plate hammer on the crusher rotor, the impact liner plate and the vulnerable parts in the cavity are made of high chromium materials and high manganese steel materials, which improves the durability of the vulnerable parts (such as the plate hammer, the impact liner plate, etc.) and the reliability of the crusher mechanical parts (such as main shaft and bearings)

Easy maintenance, can be equipped with hydraulic cover, easy to replace wearing parts

Specifications

Model

Feed opening
(mm)

Input material size
(mm)

Rotors size
(mm)

Capacity
(t/h)

Power
(kW)

shape size
(mm)

GPF1214

400×1430

350

Ф1250×1400

95~145

132/160

2700×2690×2890

GPF1315

860×1520

350

Ф1320×1500

150~200

220

3100×3280×2670

GPF1320

860×2030

500

Ф1320×1200

200~280

315

3329×3205×3279

GPF1520

2040×1315

700

Ф1512×2000

350~450

400/450

3849×3422×3649

GPF1620

2040×1315

700

Ф1612×2000

450~550

500

3949×3520×3426

GPF1822

1620×2040

700

Ф1800×2238

550~700

630/710

4471×3950×4008

GPF2022

1660×2460

800

Ф2018×2238

800~1000

900

4823×4740×4180

GPF2024

1800×2430

1200

Ф2018×2438

800~1100

1120

5668×5340×4680

Note: The yield is an approximate throughput determined based on medium hardness materials. Actual results may vary due to differences in feed, particle size, rock type, and material moisture content.
