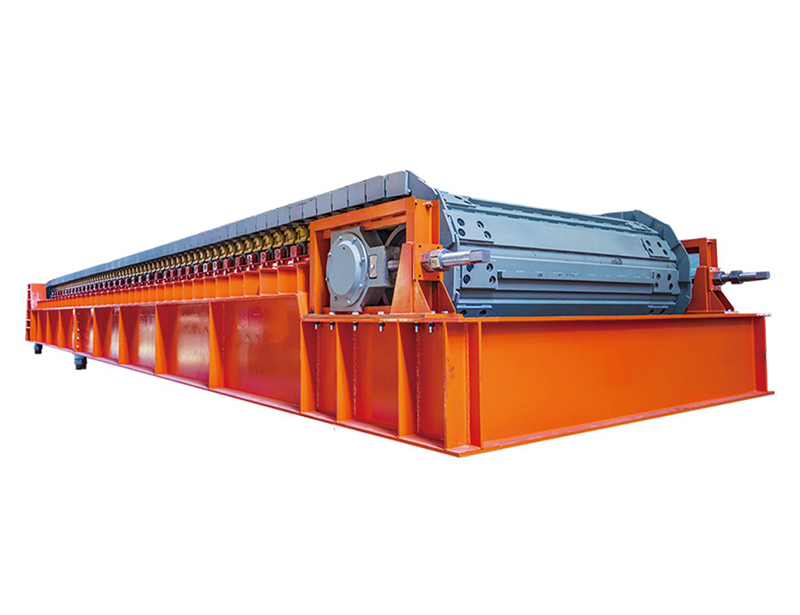

BZW Series Plate Feeder

  • Product name : BZW Series Plate Feeder
  • Product Categories : Feeder
  • Company name : Shandong Zhongse Heavy Industry Co., Ltd.
Details


Product Description

Heavy-duty plate feeder is used for conveying lumpy or loose materials to the crusher along the horizontal or inclined direction. The machine is advanced in design, compact in structure, good in speed regulation and high in safety factor. Its main technical performance indexes and service life indexes have reached the leading level of the same kind of products in China, and it has been widely used in the industries of mines, metallurgy, and cement factories, etc., and enjoys a good reputation.

Product advantages

Conveying materials of larger size, the largest block diameter up to 1.6 meters

Withstand greater silo pressure, heavy-duty plate feeder silo height of up to 10 meters

Withstand larger discharge impact

Very low failure rate, can be used in high temperature, high humidity and other harsh environments

Specifications

Model

Plate width
(mm)

Axle base of chain plate
(mm)

Feeding size
(mm)

Capacity
(t/h)

Moror
(kW)

BZW1250

1200

5000

≤600

120-450

15

BZW1560

1500

6000

≤800

200-1000

18.5

BZW1880

1800

8000

≤1300

500-1300

30

Note: The processing capacity is related to factors such as the nature of the material and the inclination angle of the feeder. The maximum processing capacity in the table is for reference only.
