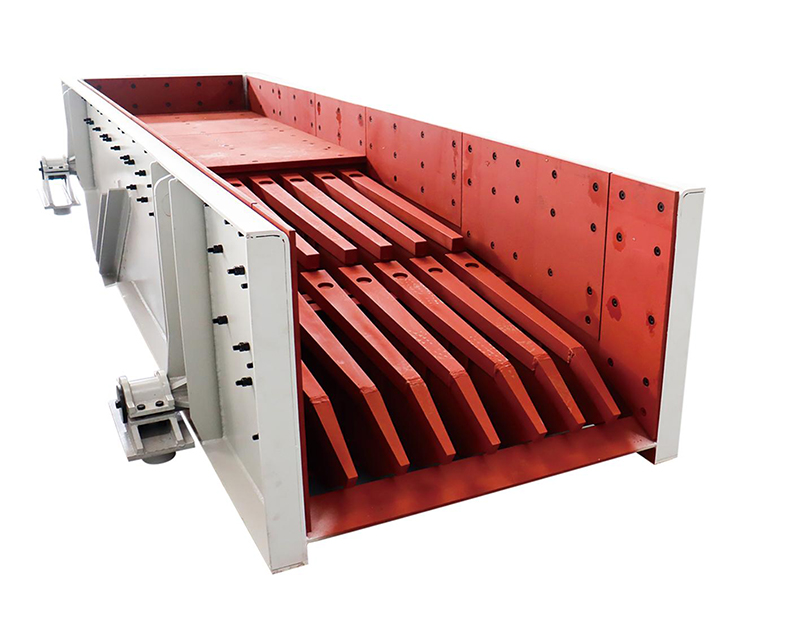

ZSW Series Vibrating Feeder

  • Product name : ZSW Series Vibrating Feeder
  • Product Categories : Feeder
  • Company name : Shandong Zhongse Heavy Industry Co., Ltd.
Details


Product Description

ZSW series vibrating feeder is designed for ultra-heavy-duty working conditions, suitable for feeding primary jaw crusher, primary impact crusher and primary clocks crusher, etc. It is widely used in stone, building materials and metal mining industries. The installation height is low, the layout space is small, its maximum handling capacity is up to 1500TPH, the maximum feed size is up to 1.5M, and the standard silo volume is 24-45m.

Product advantages

Super heavy duty tank structure for more stable feeding

High vibration strength, large handling capacity

Rotary shaft type motor shock absorber, more stable vibration

Rich bar configuration, efficient pre-screening function

Modularized design

Specifications

Model

Size
(L×W)

Max feed size
(mm)

Rotate speed
(r/min)

Capacity
(t/h)

Moror
(kw)

Weight
(t)

ZSW9538

3800×950

500

500-750

150-300

15

4.5

ZSW1142

4200×1100

600

500-800

160-380

18.5

4.8

ZSW1149

4900×1100

600

500-800

160-380

23

5.7

ZSW1249

4900×1200

600

500-800

160-380

23

5.8

ZSW1550

5000×1500

600

500-800

240-480

30

8.8

ZSW1360

6000×1300

700

500-800

320-600

30

8.2

ZSW1460

6000×1400

700

500-800

400-700

37

8.5

ZSW1560

6000×1500

700

500-800

400-700

37

9.3

ZSW1660

6000×1600

700

500-800

400-700

37

9.8


Model

Max feed size
(mm)

Rotate speed
(r/min)

Capacity
(t/h)

Moror
(kW)

Weight
(kg)

ZDW-2510

300

960

100-350

11

2500

ZDW-2512

350

960

100-450

15

2800

ZDW-2514

350

960

100-550

15

3200

ZDW-3012

350

960

150-450

18.5

3160

ZDW-3014

350

960

150-450

18.5

3500

Note: The processing capacity is related to factors such as the nature of the material and the inclination angle of the feeder. The maximum processing capacity in the table is for reference only.
