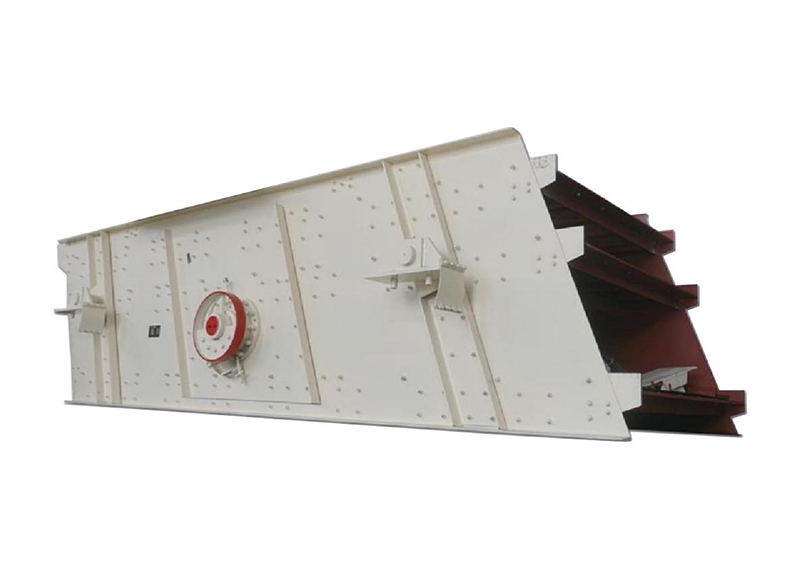

YK series vibrating screen

Product name : YK series vibrating screen
Product Categories : Sand washer
Company name : Shandong Zhongse Heavy Industry Co., Ltd.

Details

Product Description

YK series vibrating screen for circular motion track, is designed for quarry screening stone, also can be used for coal mining, mineral processing, building materials, electric power and chemical industry for product classification, with advanced structure, strong excitation, vibration noise, easy maintenance, durable and so on, is widely used in stone, metallurgy, metal mines, coal and other types of screening conditions. YK series generally has a feed particle size of ≤ 300mm and a graded particle size of 2-150mm.

Product advantages

Advanced structure with low vibration noise

Strong excitation force and high screening efficiency

Durable and easy to maintain

Specifications

Model	Spec of screen (mm)	Sieve pore size (mm)	Mesh deck	Max feed size (mm)	Capacity (t/h)	Motor (kW)	Rotate speed (rpm)	Double amplitude (mm)
2YK-2160	2100×6000	5-120	2	150	60-170	22	740-960	8
3YK-2160	2100×6000	5-120	3	150	100-250	30	740-960	8
2YK2460	2400×6000	5-120	2	150	100-200	30	740-960	8
3YK-2460	2400×6000	5-120	3	150	110-250	37	740-960	8
2YK-2470	2400×7000	5-120	2	150	150-280	30	740	8
3YK-2470	2400×7000	5-120	3	150	150-280	37	740	8
2YK-3060	3000×6000	5-120	2	150	180-420	18.5×2	740	8
2YK-3072	3000×7200	5-120	2	150	180-550	22×2	740	8
3YK-3072	3000×7200	5-120	3	150	180-550	22×2	740	8
2YK-3080	3000×8000	5-120	2	150	180-680	22×2	740	8
3YK-3080	3000×8000	5-120	3	150	180-680	30×2	740	8
2YK-3675	3600×7500	5-120	2	150	200-1000	30×2	740	8
3YK-3675	3600×7500	5-120	3	150	200-1000	37×2	740	8
2YK-3680	3600×8000	5-120	2	150	300-1100	45×2	740	8
3YK-3680	3600×8000	5-120	3	150	300-1100	45×2	740	8

Note: The yield is an approximate throughput determined based on medium hardness materials. Actual results may vary due to differences in feed, particle size, rock type, and material moisture content.
