XTY Series All-in-one Wheel Sand Washing Machine

Product name : XTY Series All-in-one Wheel Sand Washing Machine
Product Categories : Sand washer
Company name : Shandong Zhongse Heavy Industry Co., Ltd.

Details

Product Description

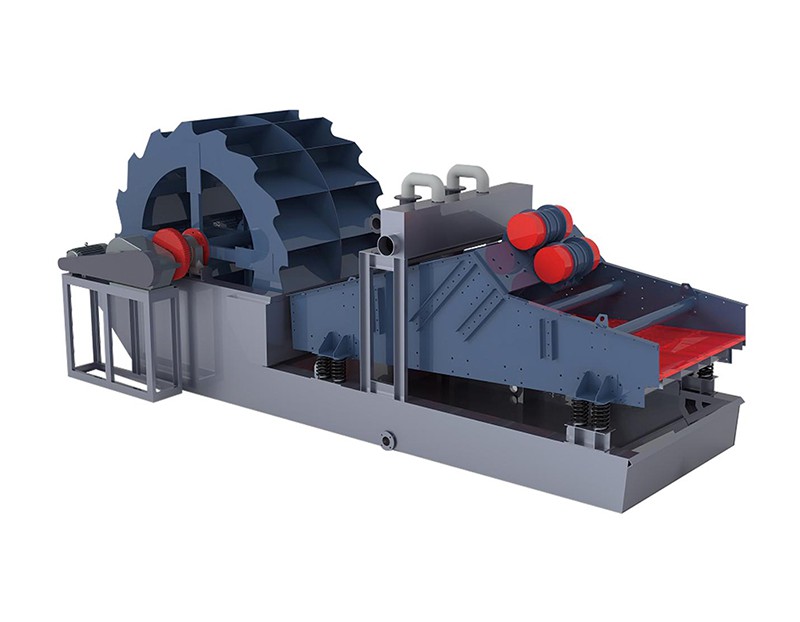

XTY series wheeled sand washing and recycling all-in-one machine adopts a modular design, consisting of modules such as sand washing, fine sand recycling, dehydration, and electrical control.

It has the characteristics of high integration, small footprint, and fully automatic control.

Product advantages

Modular design, reasonable and compact layout, small footprint, can be directly installed on suitable ground for use

Reasonable process parameter design, low equipment energy consumption, finished product mud content less than 3%, moisture content lower than industry standards

The box is made of thickened high-quality steel plate, which is high-strength, wear-resistant, and has a longer service life

Setting up overflow zones on both sides has a large surface area, stable water flow, low sand leakage, which can reduce cyclone losses, increase single machine sand production, and improve production capacity

XS wheel sand washing machine

Model	Feed size （mm）	Capacity （t/h)	Impeller specification (mm)	Motor (kW)	Weight (T)	Shape size (mm)
XS2610	≤10	20-50	φ2600*1000	5.5	2,8	3107x2272x2739
XS3016	≤10	50-100	φ3000*1600	11	4.2	3650x2839x3070
XS3018	≤10	70-120	φ2600*1800	11	4,8	3650x3039x3070
XS3618	≤10	100-180	φ3600*1800	15	7.1	4300x3364x3685
XS3620	≤10	120-200	φ3600*2000	15	7.9	4300x3564x3685

XYT wheel sand washing and recycling integrated machine

Model	Sand wheel （mm）	Dewatering screen （mm)	Separator model	Treated water (m³/h）	Sand production （t/h）	Motor （kW）	Weight （T）
XTY2610-24	φ2600x1000	1200x2400	250/300/350	60-120	30-50	24.4	4.9
XTY2610-30	φ2600x1000	1500x3000	250/300/350	100-160	50-70	33.5	5.3
XTY3016-30	φ3000x1600	1500x3000	250/300/350	100-160	50-100	47	6.6
XTY3018-40	φ3000x1800	1800x4000	250/300/350	100-160	70-120	52	7.3
XTY3618-45	φ3600x1800	1800x4500	250/300/350	160-450	100-180	83	14.2
XTY3620-45	φ3600x2000	1800x4500	250/300/350	160-450	120-200	97	14.8

2XYT dual wheel sand washing and recycling integrated machine

Model	Sand wheel （mm）	Dewatering screen （mm)	Separator model	Treated water (m³/h）	Sand production（t/h）	Motor （Kw）	Weight（T）	Shape size （mm）
2XTY2610-30	φ3000x1600	1500x3000	FX250*2	60-120	30-80	39	8.1	8907x5560x2750
2XTY3016-30	φ3000x1600	1500x3000	FX300*2	80-150	50-100	50	12	10305x5560x3600
2XTY3018-40	φ3000x1800	1800x4000	FX350*2	100-180	70-120	60	13.6	11670x5860x3670
2XTY3018-42	φ3000x1800	1800x4200	FX250*4	120-240	80-150	68	15	11670x5860x3670
2XTY3618-45	φ3600x1800	1800x4500	FX250*4	120-240	100-180	74	15	13490x5860x4100
2XTY3620-45	φ3600x2000	1800x4500	FX300*4	150-300	120-200	89	19	12883x5860x3985

Note: The yield is an approximate throughput determined based on medium hardness materials. Actual results may vary due to differences in feed, particle size, rock type, and material moisture content.
